KILONY SENSOR PROBE KC TYPE
(ITEM OF SEAM TRACKING SYSTEM FOR WELDING)

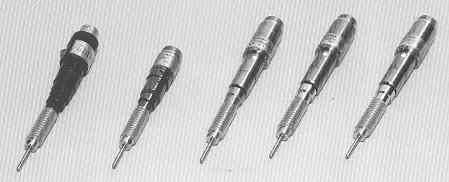

(KC33+KC2+KC11+05+KC11-03)
KILONY SENSOR PROBE KC TYPE
(ITEM OF SEAM TRACKING SYSTEM FOR WELDING)
FEATURES OF "KILONY" SENSOR KC TYPE "KILONY"SENSOR KC TYPE is one of the main composite units, "KILONY" Guide NC Type, "KILONY" Auto Guide NF Type. There are 2 Types of output signal, 'contact signal' and 'analog voltage signal'.KC11 and KC2 of 'contact signal output' is having excellent heat resisting and environmental resisting.
KC33 of 'analog voltage signal output' is characterized in high function of probing tack welding bead and end of work piece.
"KILONY" Sensor KC Type is exclusively used with "KILONY" Guide "KILONY" Auto-Guide and also these related. It is definitely required to use in assembling with "KILONY" Control System only. KC Type alone can not be used.
In case the system applied with "KILONY" Sensor KC Type is under consideration of ordering, please contact. State in combination with interface board and control system related can be served.
| Model | KC11 | KC2 | KC33 |
| Output Signal | Contact Dignal | Contact Dignal | Analog Voltage Dignal |
| Measurement | φ23max.×95mm | φ21max.×65mm | φ25max.×85mm |
| Fitting Size | φ18mm | φ18mm | φ20mm |
| Self Weight | 0.17kg | 0.08kg | 0.15kg |
| Load in Operation | 0.08～0.12kg | 0.08～0.12kg | 0.08～0.12kg |
| Tracking Accuracy | ±0.3,0.5,0.1mm | ±0.3,0.5,0.1mm | ±0.1～0.3mm |
| Control Unit | CC107,CC15,CC26,CC28 | CC107,CC15,CC26,CC28 | CC307,CC105 |
| Connector | 4P | 4P | 7P |
| Function, Feature |
standard, heat resisting, environmental resisting |
standard, heat resisting, environmental resisting |
standard, environmental resisting |
[NOTE] Standard Specification This will be changed without notice.
PROBE TIP AND PROBE TIP SHAPE
