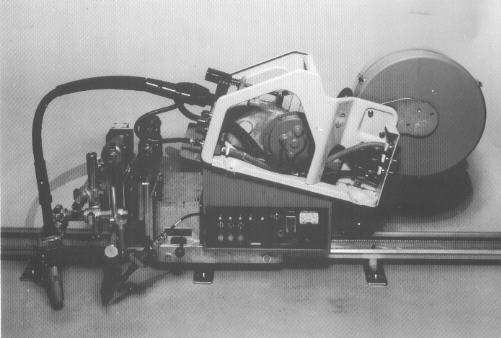

"WELD RUNNER" is systematized in one unit, in combination with welding Driving Sequence Control„High Precise Comparative Controlled Seam Tracking ("KILONY" Auto Guide NF Type) and Carriage Unit.It's compact and light weighty. By connecting it with Semi-automatic Welding Power Source, it can be used as Automatic Welding Carriage.
Manual operation is also very simple, "just push a starting button". After that, "KILONY" Auto Guide which is proud of many past record and high practicability and also Exclusive Welding Driving Sequence Control Unit will run to totally automated welding.
At the end of work, Seam Tracking will be OFF automatically and will weld continuously up to the end, and then be finished after lifting up the torch.
"WELD RUNNER" is really useful and practical on the spot.
 |
 |

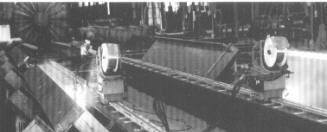

| Photo 1 Applied on the spot 1 | Photo 2 Applied on the spot 2 |
 |
Basic Operation |
| 1.Set seam tracker and push the button. | |
| 2.Arc is generated,and carrige will start traveling, then high precise seam taracking will automatically start. | |
| 3.Seam tracker will turn off automatically at the ending, and welding will continue to the last. | |
| 4.Torch is automatically lifting up itself. | |
| 5.Carrige is returning back at high speed to the start position(option). |
| Carrige Traveling Speed | 140-1400mm/min |
| Carrige Traveling Method | holding type rail, rack and pinion |
| Seam Tracking System | NF-3 Accurary }0.1mm |
| Seam Tracking Stroke | Vertucal and Horizontal 100mm |
| Probe Sensor Adjusting Torch Adjusting |
up/down right/left 20mm by handle up/down right/left 300mm by handle Rack Adjuster HL33-300 |
| Welding Length Setting | by automatic prpbe (KC33) |
| Exciusive Rail | DR100 1.98m length (100mm width) with joint metal aluminum, portable |
| Tack Welding Probe | with tack welding probe function |
| Optional, Set Model:PA1R | return function to original position |
* Specification to be subject to change
without
prior notice.
